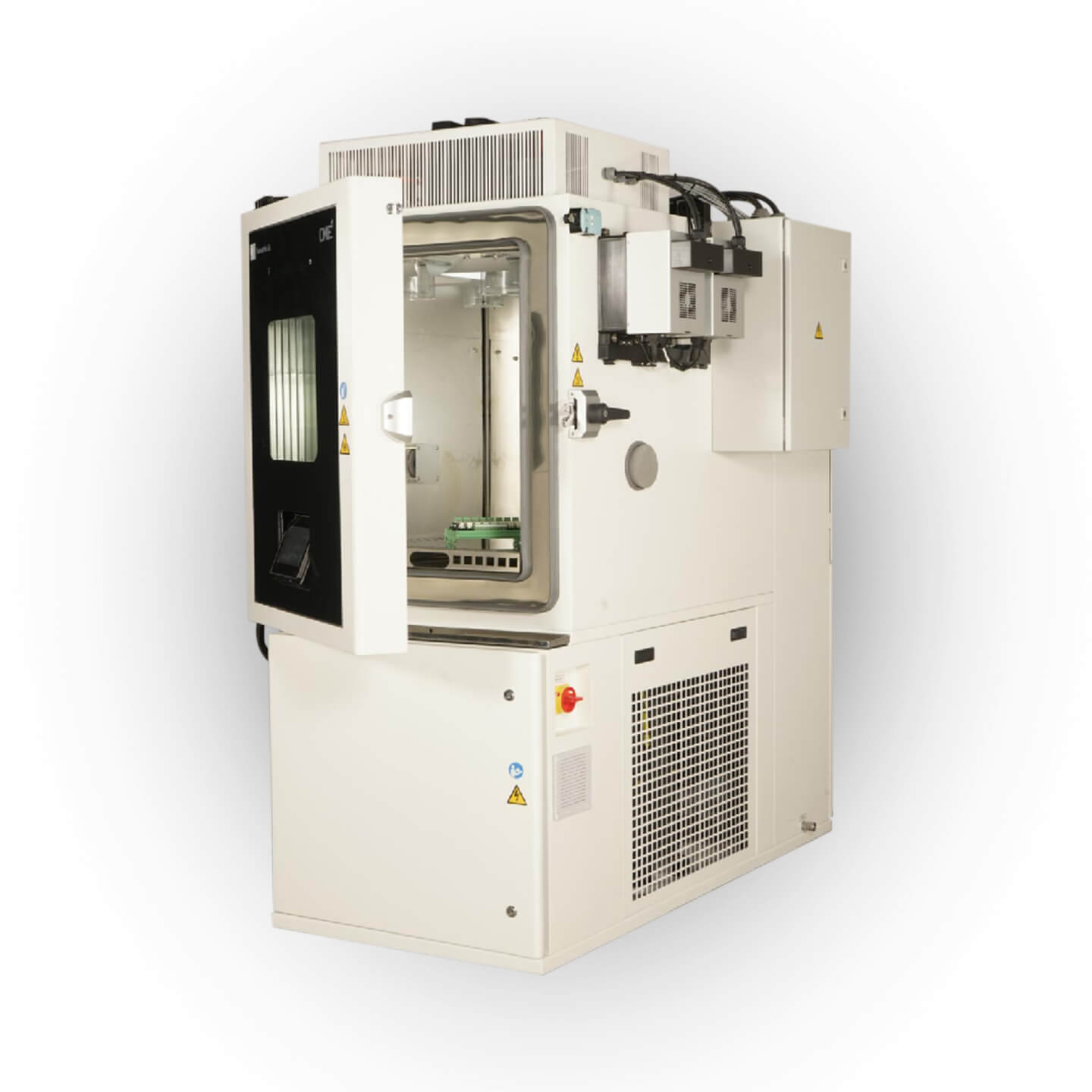

Solar Radiation Chamber
The PAC series of climatic chambers are a great choice for cyclic low, high temperature and humidity tests. Built with the highest quality and reliability, this chamber can meet the most stringent testing needs of various international standards such as ASTM, IEC, MIL, DIN, etc.
The PAC series of climatic chambers are a great choice for cyclic low, high temperature and humidity tests. Built with the highest quality and reliability, this chamber can meet the most stringent testing needs of various international standards such as ASTM, IEC, MIL, DIN, etc.
With precision and reliability embedded into its DNA, it guarantees accurate and consistent results.
Revolutionary Plasma Lamp Technology: Transition from outdated Xenon or Metal Halide systems to our innovative plasma lamp, which emits sunlight directly (CIE 85, Tab. 4). This eliminates the necessity for filters, offering superior spectral stability and ensuring consistent UV light performance for up to 20,000 hours, significantly reducing maintenance costs in the process.
Cost-Effective Solar Radiation Testing: With a vision to make solar radiation testing accessible, we've merged top-tier performance with low maintenance through our Plasma Lamp technology. This effectively democratizes the solar radiation testing process, helping you save on costs without compromising on the quality of results.
Got Technical Question!
Measurement capabilities:
- Solar Radiation test Method 505.5 of MIL-STD-810H standard
- DIN 75220
| The SolarRadTest family is designed to meet the following standards: | |
|---|---|
| General | ASTM G151, G155 |
| Automotive | DIN 75220, SAE J2412, SAE J2527 |
| Building | ASTM C1442, C1501, D2565, D4637, D4811, D6083, D6662 |
| Cable/Wire | ASTM D1248 |
| Chemical | EPA/ASTM E896, OECD 432, OECD 316, OECD Guideline Phototransformation of Chemicals on soil |
| Coatings | ASTM D3451, D3794, D6577, D6595, D6695, ISO 11341, ISO 16474-2, Qualicoat, RAL-RG631 |
| Cosmetic | COLIPA In-Vitro UVA (2011), ISO 24443:2012, L'Oreal QAC-MC-151-O |
| Geotextile | ASTM D4355 |
| Graphic | ASTM D904, D3424, D4303, D5010, D6551, D6901, F2366 |
| Medical | ISO 4049, 7491, 11979-5 |
| Plastics | ASTM D2565, D4101, D4459, D5071, ISO 4892-1, 4892-2 |
| Pharma | ICH Q1B, Q5C |
| Textile | AATCC TM169, ISO 105-B10 |
| Models | PAC 120 | PAC 225 | PAC 380 | PAC 540 | PAC 1000 | PAC 1500 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | A | B | A | B | A | B | A | B | A | B | |||
| Test Space Volume | Ltr | 120 | 225 | 380 | 540 | 1000 | 1500 | |||||||
| Temperature Range | (°C) | -40 to +120 |
-70 to +120 |
-40 to +120 |
-70 to +120 |
-40 to +120 |
-70 to +120 |
-40 to +120 |
-70 to +120 |
-40 to +120 |
-70 to +120 |
-40 to +120 |
-70 to +120 |
|
| Ramp rate** | (°C/min) | 3/5/6/7/8/10/12/15/20 as per IEC 60068-3-5 | ||||||||||||
| Sun Spectrum | 280nm to 3000nm | |||||||||||||
| Bulb Lifetime | more than 30000 hours | |||||||||||||
Ethernet
Ethernet capability to remotely monitor and control the chamber.
USB
USB Type-A host port to connect a keyboard or mouse or download CSV data via pen drive [max 2GB] USB Type-B data port for connection to PC for software upgrade and access memory card storage
Web Server
Built-in web server allows remote view or control from any internet connected PC, tablet or smart phone
NI Lab view
The communication which used is MODBUS RTU protocol, which is an international standard for communication in process instrumentation and automation. Necessary changes to be made in the user’s software to communicate this in MODBUS RTU universal protocol. This feature can be used manual mode only.
Hardware
Enhanced with modular controller integrating multi-zone PID control and data acquisition. SIMATIC programmable logic controller. Touch screen controller, PLC and other controller components are of a generic make with an OEM software. Free software upgrades up to one year.
Memory
SD card of 2GB memory will store all the test program data and also the diagnostic data. This card is accessible by USB and Ethernet.
Digital Events
1 digital output for switching test specimen via potential free contacts, load max. 24 VDC, 5A
Programs
99 independent programs can be stored with name and number. Each of these programs have segments which can be looped to a previous segment and repeated up to 999 cycles, creating almost unlimited number of segments The chamber can be operated in manual mode, where the set point can directly be changed in the home screen The ramp rate can be set as a value in °C/min or ramp time Graphical representation of the temperature program The time is logged only when the set valve is within the band.
Trend Graph
Real time trend graph for temperature set value, temperature process value, humidity set value and humidity process value. Options of zoom in/out, pan and individual plot selection
Security
Multi level security of guest, user, admin and factory level users with individual password protection All settings can be reset to factory defaults using admin login
PID
6 zone based PID’s with auto recall of PID based on type of program, segment and zone can be set. Each of these PID’s can be set by using the auto tune feature or manually based on user’s requirements.
Process Mimic
Graphical representation of the working of the chamber, with live status of all the components, including the current temperature/humidity process values, compressor suction/discharge pressures and return gas temperature
Power Resumption Modes
In case of a power failure, option of conditional restart based on temperature/time or continuous
Diagnostics
Event viewer will display a log of all errors/actions with a date and time stamp PLC inputs and outputs status will be indicated
Service Monitor
Log of critical components life cycle with a predefined life cycle time and elapsed time in hours
Delay Start
Real time clock based, delayed start function
