Walk-In Climatic Chamber for Refrigerator Testing
Home Appliances especially refrigerators are constantly under scanner to be more energy efficient, reliable and environment compliant. This has led many manufacturers to bring new innovations in their product line-up. Many such manufacturers are using CME chambers to test their new products for its cooling performance, energy efficiency and construction reliability under various environmental conditions.
Home Appliances especially refrigerators are constantly under scanner to be more energy efficient, reliable and environment compliant. This has led many manufacturers to bring new innovations in their product line-up. Many such manufacturers are using CME chambers to test their new products for its cooling performance, energy efficiency and construction reliability under various environmental conditions.

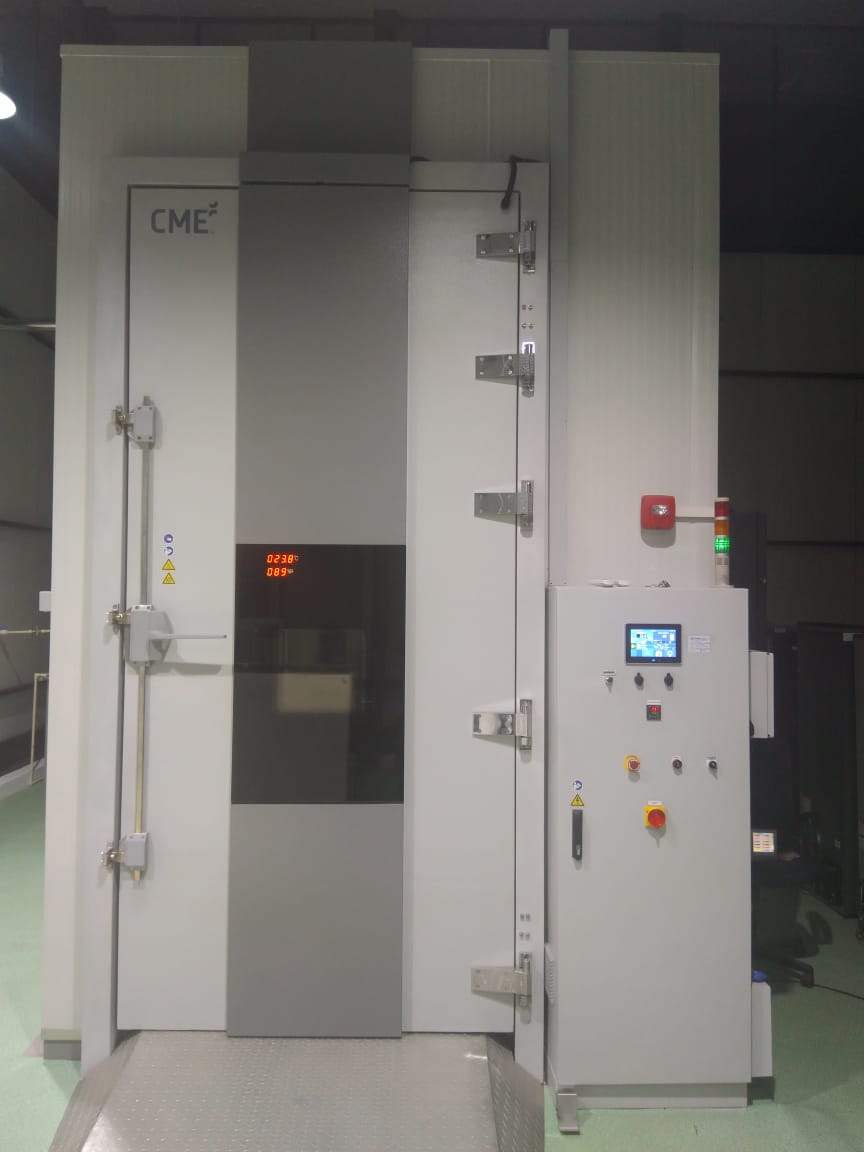

The featured Walk-In Chamber has test space capacity of 25,344 Litres, temperature range of -15°c to 50°c and humidity range of 10%RH to 98%RH. The test chamber has two port holes for live product testing with rate of change of heating/cooling 0.2 °c (with mass) and controlled airflow rate of 0.5m/s. The energy efficient chamber is customisable as per customer’s requirement with 24X7 customer support and is available in 18 countries.
We ensure safety while you are testing your product. Safety systems like fire suppression system, gas monitoring systems and safety evacuation of the gases from the system.
Got Technical Question!
Description | Specification | ||||
Workspace Dimensions - WxDxH | |||||
mm | 2200 | x | 3600 | x | 3200 |
In | 87 | x | 142 | x | 126 |
Volume | |||||
Ltr | 25344 | ||||
Cuft | 896 | ||||
Temperature Range | |||||
°C | -15 | To | 50 | ||
°F | 5 | To | 122 | ||
Ramp Rates | |||||
Cooling °C/min | 0.2 | ||||
Heating °C/min | 0.2 | ||||
Airflow in workspace | |||||
m/s | 0.5 |
Ethernet
Ethernet capability to remotely monitor and control the chamber.
![refrigerator testing ethernet cmenvirosystems](/dynamic/Controllers/1_Image.jpg)
USB
USB Type-A host port to connect a keyboard or mouse or download CSV data via pen drive [max 2GB] USB Type-B data port for connection to PC for software upgrade and access memory card storage
![refrigerator testing usb cmenvirosystems](/dynamic/Controllers/2_Image.jpg)
Web Server
Built-in web server allows remote view or control from any internet connected PC, tablet or smart phone
![refrigerator testing web server cmenvirosystems](/dynamic/Controllers/3_Image.jpg)
NI Lab view
The communication which used is MODBUS RTU protocol, which is an international standard for communication in process instrumentation and automation. Necessary changes to be made in the user’s software to communicate this in MODBUS RTU universal protocol. This feature can be used manual mode only.
![refrigerator testing ni lab view cmenvirosystems](/dynamic/Controllers/4_Image.jpg)
Hardware
Enhanced with modular controller integrating multi-zone PID control and data acquisition. SIMATIC programmable logic controller. Touch screen controller, PLC and other controller components are of a generic make with an OEM software. Free software upgrades up to one year.
![refrigerator testing hardware cmenvirosystems](/dynamic/Controllers/9_Image.jpg)
Memory
SD card of 2GB memory will store all the test program data and also the diagnostic data. This card is accessible by USB and Ethernet.
![refrigerator testing memory cmenvirosystems](/dynamic/Controllers/10_Image.jpg)
Digital Events
1 digital output for switching test specimen via potential free contacts, load max. 24 VDC, 5A
![refrigerator testing digital events cmenvirosystems](/dynamic/Controllers/11_Image.jpg)
Programs
99 independent programs can be stored with name and number. Each of these programs have segments which can be looped to a previous segment and repeated up to 999 cycles, creating almost unlimited number of segments The chamber can be operated in manual mode, where the set point can directly be changed in the home screen The ramp rate can be set as a value in °C/min or ramp time Graphical representation of the temperature program The time is logged only when the set valve is within the band.
![refrigerator testing programs cmenvirosystems](/dynamic/Controllers/15_Image.jpg)
Trend Graph
Real time trend graph for temperature set value, temperature process value, humidity set value and humidity process value. Options of zoom in/out, pan and individual plot selection
![refrigerator testing trend graph cmenvirosystems](/dynamic/Controllers/16_Image.jpg)
Security
Multi level security of guest, user, admin and factory level users with individual password protection All settings can be reset to factory defaults using admin login
![refrigerator testing security cmenvirosystems](/dynamic/Controllers/5_Image.jpg)
PID
6 zone based PID’s with auto recall of PID based on type of program, segment and zone can be set. Each of these PID’s can be set by using the auto tune feature or manually based on user’s requirements.
![refrigerator testing pid cmenvirosystems](/dynamic/Controllers/6_Image.jpg)
Process Mimic
Graphical representation of the working of the chamber, with live status of all the components, including the current temperature/humidity process values, compressor suction/discharge pressures and return gas temperature
![refrigerator testing process mimic cmenvirosystems](/dynamic/Controllers/7_Image.jpg)
Power Resumption Modes
In case of a power failure, option of conditional restart based on temperature/time or continuous
![refrigerator testing power resumption modes cmenvirosystems](/dynamic/Controllers/8_Image.jpg)
Diagnostics
Event viewer will display a log of all errors/actions with a date and time stamp PLC inputs and outputs status will be indicated
![refrigerator testing diagnostics cmenvirosystems](/dynamic/Controllers/12_Image.jpg)
Service Monitor
Log of critical components life cycle with a predefined life cycle time and elapsed time in hours
![refrigerator testing service monitor cmenvirosystems](/dynamic/Controllers/13_Image.jpg)
Delay Start
Real time clock based, delayed start function
![refrigerator testing delay start cmenvirosystems](/dynamic/Controllers/14_Image.jpg)
